產品介紹
CHARACTERISTICS & PERFORMANCE:
- Application :Highly corrosive conductive liquids such as 100% Sulphuric acid
- Diameter size :6.3mm average
- Continuity wires :Spirally-winded Yellow & Red insulated with fire-resistant fluoropolymer
- Central core :Insulated AWG18 stranded copper wire for greater pulling resistance
- Sensing wires :Spirally-winded 2 x Black wires, semi-conductive fire-resistant fluoropolymer
- Carrier :Fire-resistant fluoropolymer material with yellowish brown colour in high visibility
- Fire resistance : UL910 (NFPA 262), highest Fire/Smoke standard

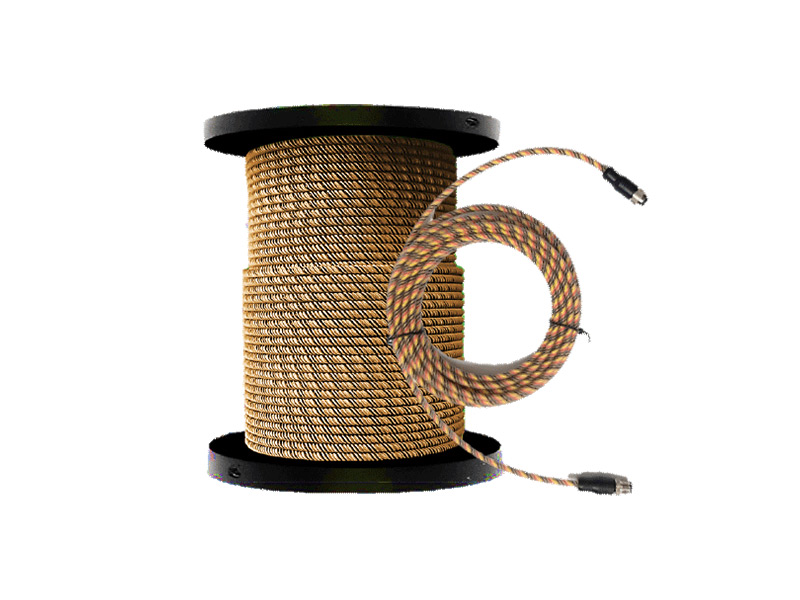

3L-AS SENSING CABLE LENGTH:
• Available in standard length of 1m, 3m, 7m and 15m ( cut-to length is available upon request)
3L-AS SENSING CABLE CONNECTIONS/JOINTS:
- M12 (14.5mm diameter) Male/female connector (i.e. all connections/joints is modular)
- Hot-Shrink-Tube approach is available upon request or as per requirement (i.e. all connections/joints is fix)
