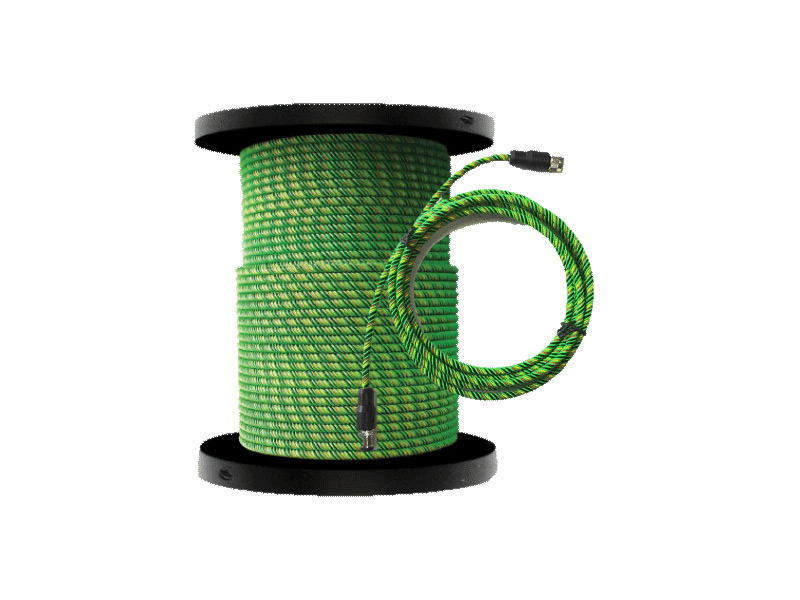

3L-LS Sensing Cable

CHARACTERISTICS & PERFORMANCE:

Application :Water and slightly corrosive conductive liquids

Diameter size :6.3mm average

Continuity wires :Spirally-winded White & Red insulated with flame-retardant polymer

Central core :Insulated AWG18 stranded copper wire for greater pulling resistance

Sensing wires :Spirally-winded 2 x Black wires, semi-conductive polymer

Carrier :Flame-retardant polymer material with greenish colour in high visibility

Fire resistance :Non-flame propagating and self-extinguishing

3L-LS SENSING CABLE CONNECTIONS/JOINTS:

• M12 (14.5mm diameter) Male/female connector (i.e. all connections/joints is modular)
• Hot-Shrink-Tube approach is available upon request or as per requirement (i.e. all connections/joints is fix)
